Circular arcs for QGIS & co
Marco Bernasocchi
Founder OPENGIS.ch · Creator QField.org · Chair QGIS.org · VP OSGEO.org
Arcs?
Arcs?
- maths instead of many little segments

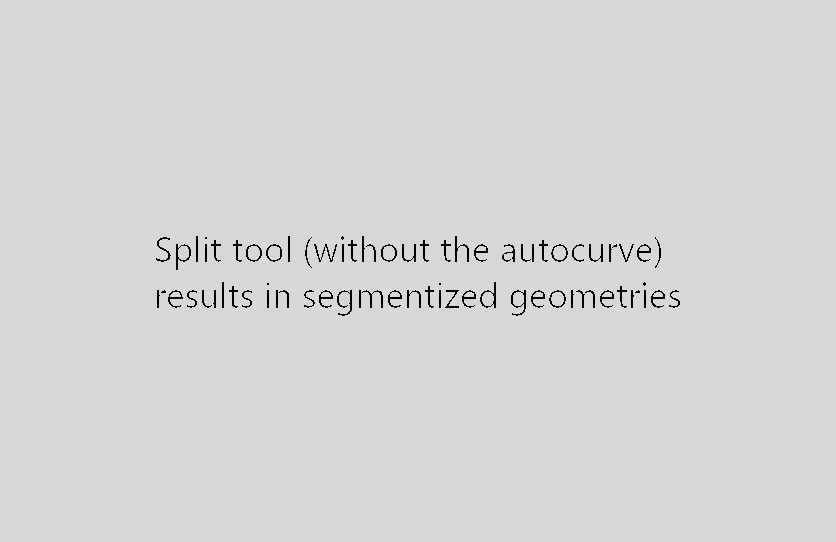

- segmentation leads to diverse datasets
10 y ago
QGIS HF and QGIS.ch already a subject
did not start from scratch
- PG, GeoPackage, GDAL can store/understan arcs

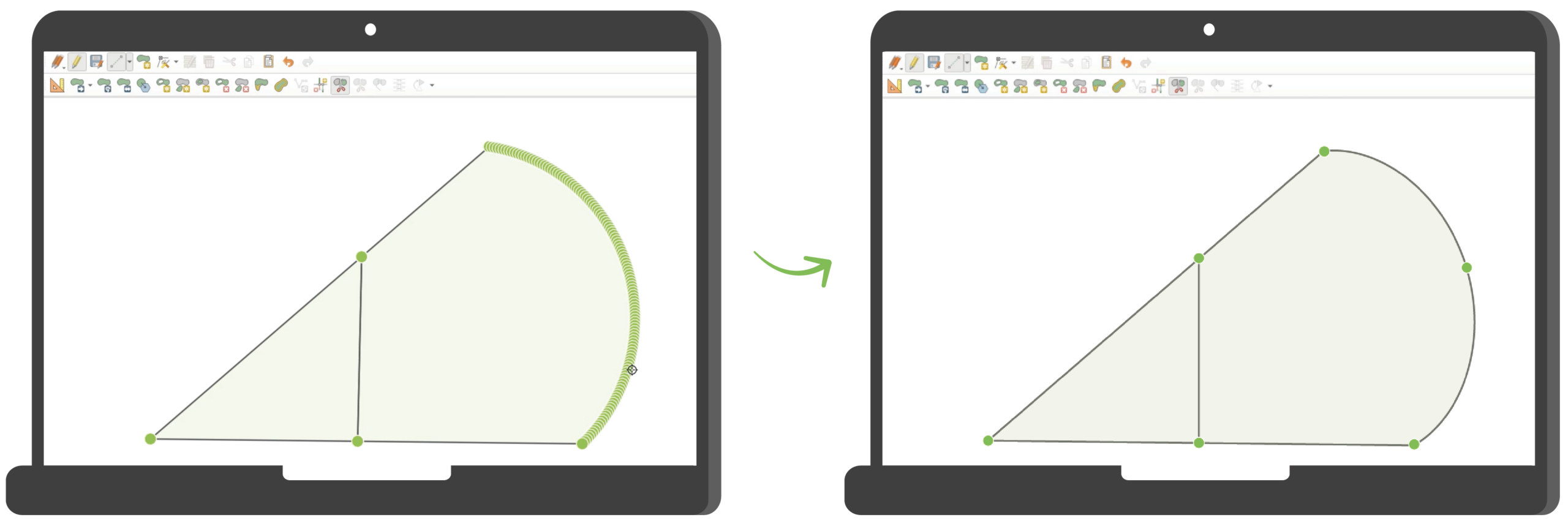

- QGIS can edit arcs

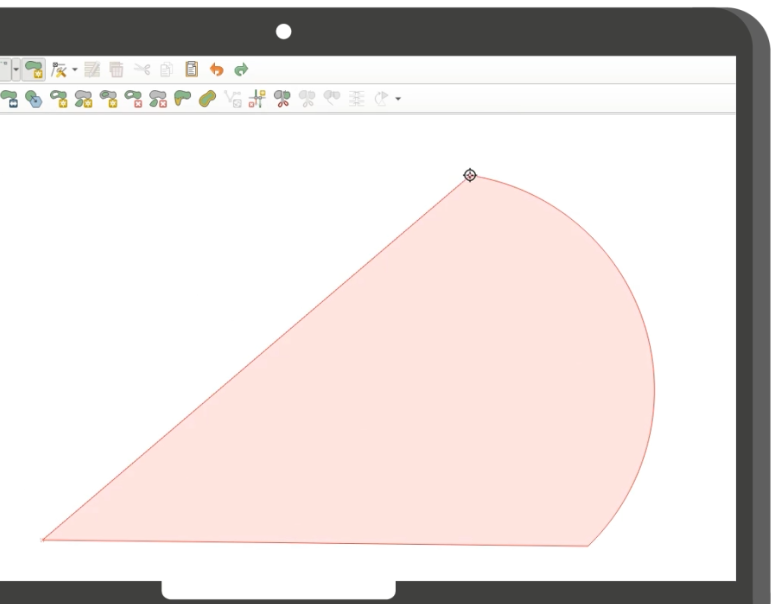

BUT no geometric operations!
so where do we fix this
- we did a plugin years ago
how does OSS work

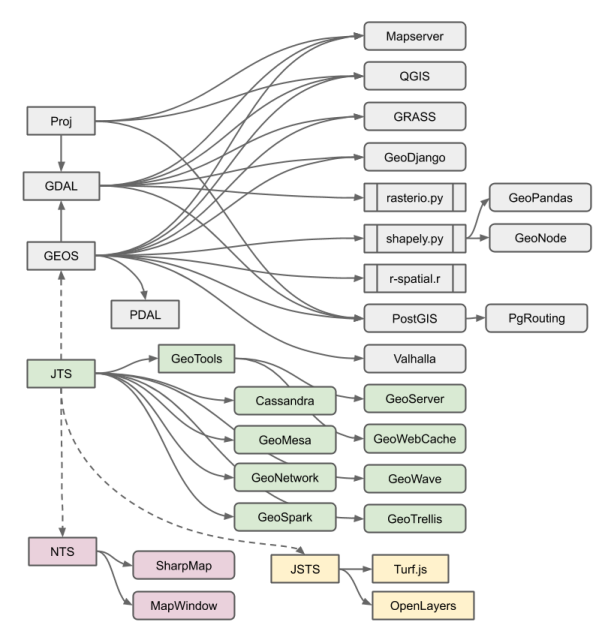

- specialised libraries that do one thing well and are reusable
- dont do all in a plugin/extention/integration
- good contributors try to bring/fund things upstream
Solution?
Fix it in GEOS
what did we do 2024
- Crowfunding 25K
- pilot project -> make geos understand arcs
- geos community showed acceptance for the subject, project was merged
what did we do 2025-2026
- crowdfunding 125K
- Implementation in GEOS
First of all thanks!
- Bundesamt für Landestopografie swisstopo
- Verein AV-QGIS
- Kanton Schaffhausen
- Grundbuch- und Vermessungsamt Basel-Stadt
- Stierli + Ruggli Ingenieure + Raumplaner AG
- Kantonale Verwaltung Appenzell Innerrhoden
- Amt für Grundbuch und Geoinformation des Kantons Zug
- Ville de Morges
- Amt für Informatik des Kantons Thurgau
- Kantonale Verwaltung Appenzell Innerrhoden
- Kanton Basel-Landschaft
- Amt für Geoinformation des Kantons Bern
- QGIS Anwendergruppe Schweiz
- Kanton Glarus - Bau und Umwelt
- Metron Raumentwicklung AG
- Trigonet AG
- QGIS Deutschland
- Kanton ZUG
where are we at 2024-2025
2024
- Add representation for curved geometry types to GEOS
- input/output using WKT and WKB
2025
- Low-level algorithms for curves: get intersection point(s) and arc(s) of two curves.
- Compute all intersection points between two geometries
where are we at 2026
- Added functions to convert between curved geometries and linear approximations
- accept curved inputs for all GEOS C API functions
- incrementally add true curve support without clients needing to change their code.
- Functionality is similar to QGIS, with the addition of a “maximum arc angle” in line-to-curve conversion
- Work-in-progress PR: https://github.com/libgeos/geos/pull/1382
- Adding true curve support for some C API functions where linearization really makes no sense: GEOSBoundary, GEOSNormalize, perhaps GEOSDensify.
what is next
2026 April - ?
- Adding true curve support to Overlay engine. (GEOSIntersection, GEOSDifference, etc.)
- Expected done by end of 2026, assuming current rate of funding.
Challenges
- tollerance in java ili2db hardcoded based on the LV95 and educated guessing, not possible for geos since it works on all CRS precisions
- mantain arcs that belong to the same circle over multiple calculation steps -> see arcs defined by 3 points vs arcs with center + radius
- Robustness issues: Open source GIS libraries have 25 years of experience and accumulated test cases for robustness of operations on linear geometries. This is lacking for curved types. It’s expected that issues will come up once the curve algorithms encounter geometries from the wild.
Roadmap
- Pilot project integrated in geos 3.13 (Sepember 2024)
- Q3 2026 finished implementation in GEOS
- Q4 Stabilisation
- Target QGIS ~4.6
And why this?

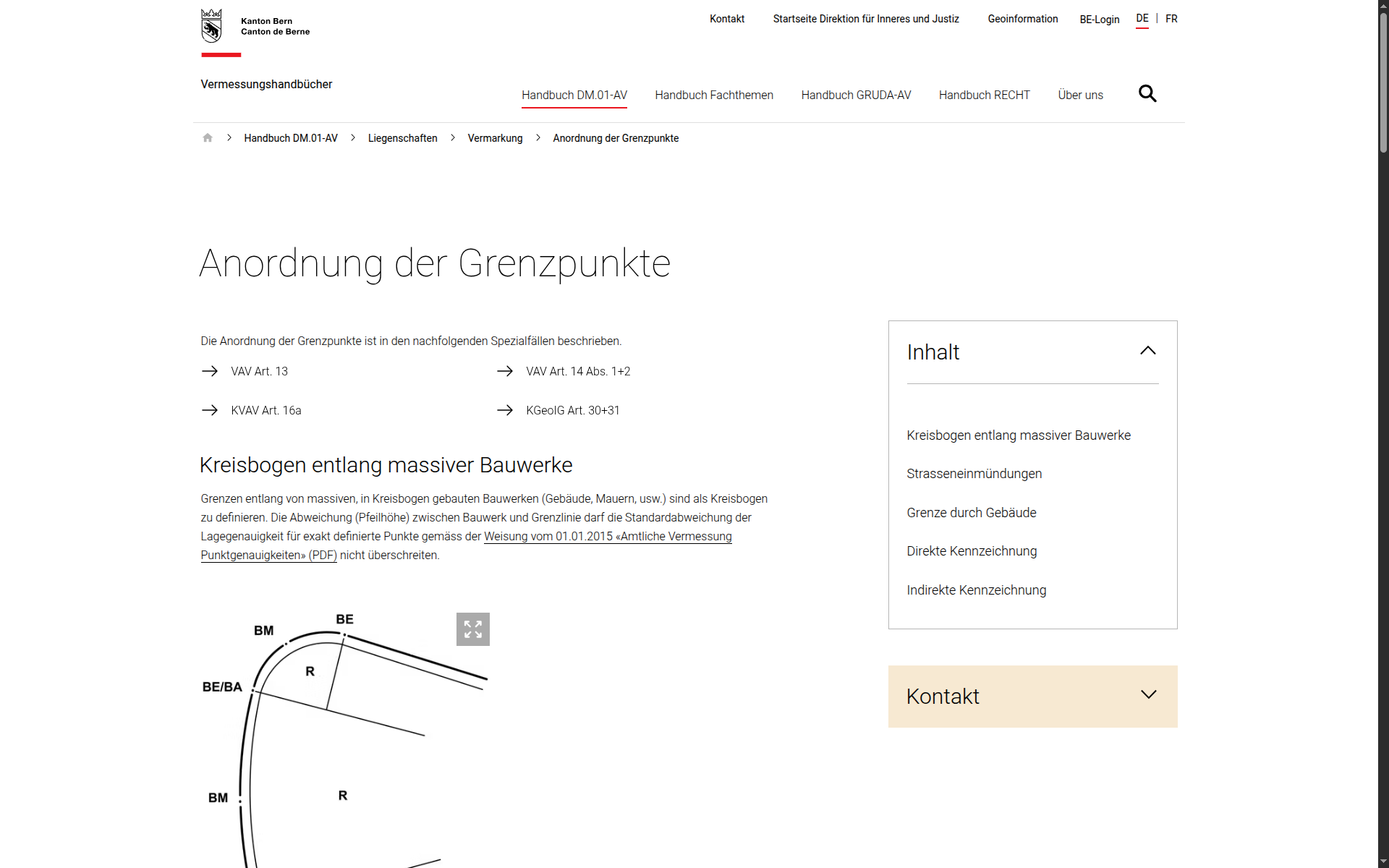

- in CH we have AV that requires arcs
- datasets building on it z.b Nutzungsplanung
- difficult to work properly with OS GIS
- AV-QGIS is coming
- QGIS to become THE tool for this use cases
Want to know more?
QGIS User conference and contributor meeting 2026
- 4-9 October 2026
- Laax, Switzerland
- conference.qgis.org
